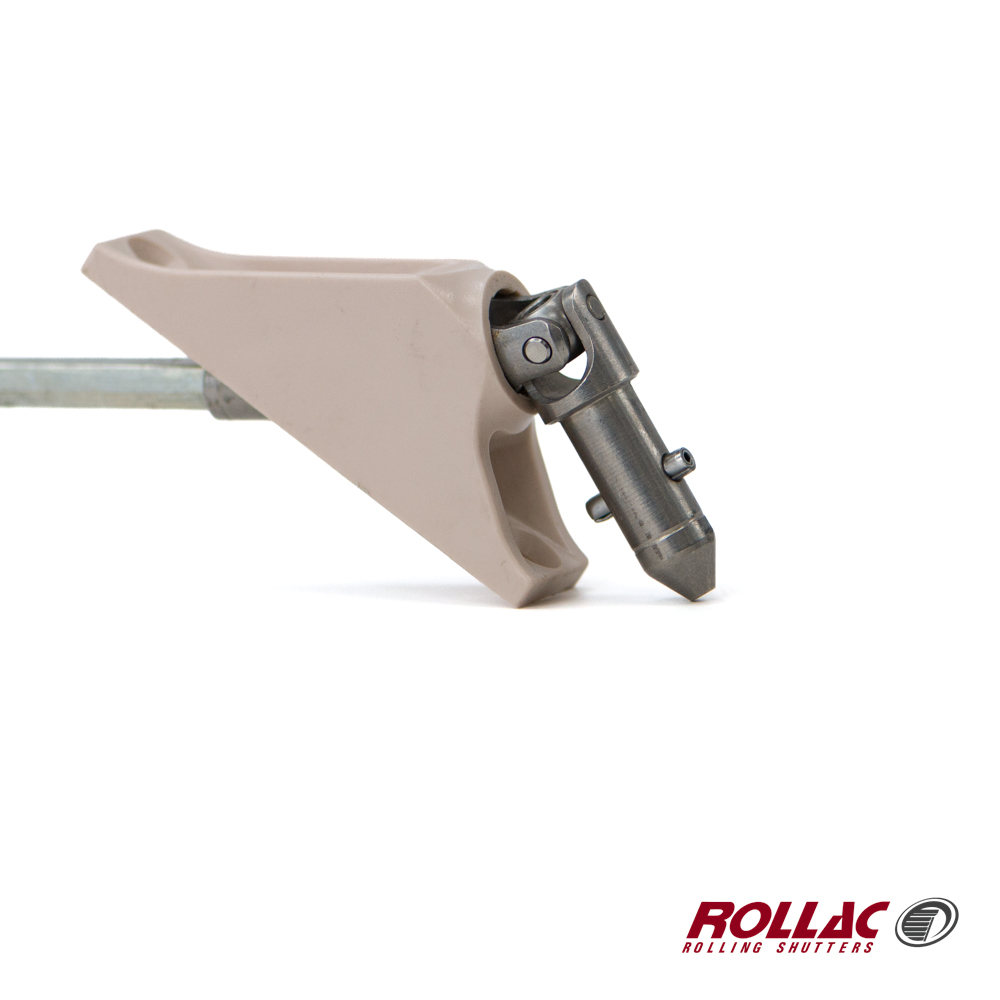

Small-Bell 2-Hole Plastic Multiple Colors 90° SQ or HX Shaft

Small bell universal with flexible joint and drive shaft to connect into a gear or motor. Drive shaft can be hexagonal or square. It has a plastic plate with 2 holes to be fixed in the roller shutter housing. Can also be used for inside operation of exterior mounted security rolling shutters. Requires crank handle #6406. If you are looking to replace an existing part and are unsure if you are using a small or big bell; measure the thickness of the bullet that your crank handle grabs onto. This universal is a small bell; the bullet should be 11.9mm. Big bells are 13.9mm and will not use the same crank handle.

Product Codes:
6219-Beige 7MM HX
6218-Beige 8MM SQ
6223-White 7MM HX
6222-White 8MM SQ
6225-Cream 7MM HX
6224-Cream 8MM SQ
6227-Brown 7MM HX
6226-Brown 8MM SQ
6229-Grey 7MM HX
6228-Grey 8MM SQ
6216-Bronze 8MM SQ
